PAINTED CARDBOARD LABEL
ABMARK laser equipment is used to encode and mark products of a wide variety of materials, including paper, cardboard, plastics (PET, PVC, HDPE), glass, metals and wood. The messages and graphics that are achieved are of high quality, at a minimum operating cost and at high speeds.
Application News regularly provides a sample of products that are encoded and labelled with ABMARK lasers, every day and worldwide.
 |
Cardboard coding using CO2 lasers is one of the most widespread types of marking in the industry. However, the increasing power capacity and improved optical performance of lasers have made it possible to evolve from encoding an expiration date to encoding full labels.

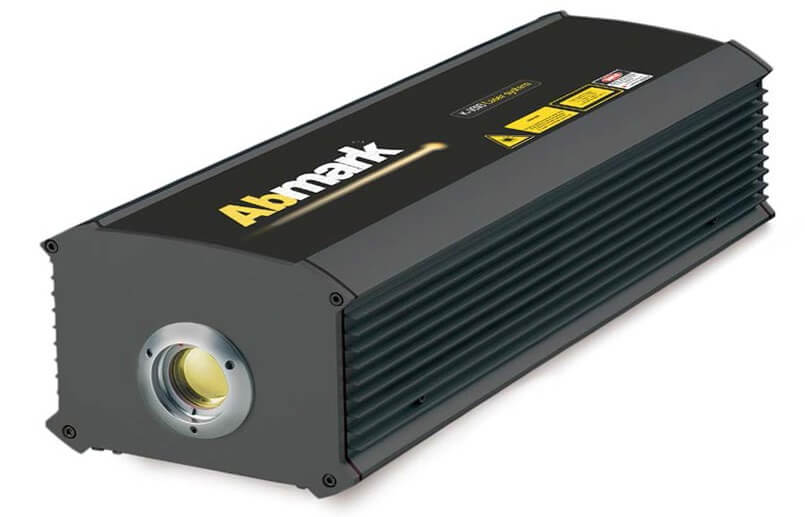

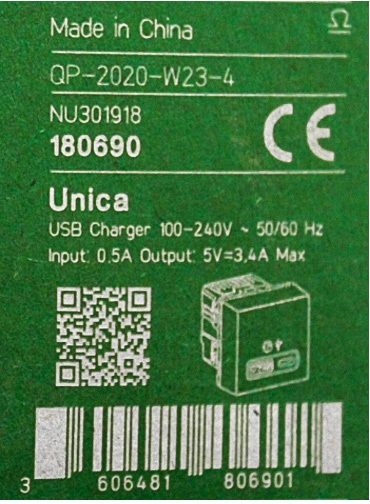

In the case of the application presented, a complete label with dimensions of 150×70 millimeters is marked. The label is made up of different types of barcodes, QR code, text, logos and drawings, and due to the size of the letters, it requires very high definition. Although the characteristics of a wide marking field and high definition constitute a challenge in marking, the C Series with HPD (High Power Density) head provides a compromise between both aspects and responds very well. These heads combine optical properties of the laser beam and the mirrors that allow for high density energy focused on a small point, making it possible to strip the paint from the cardboard efficiently and with high legibility. |
The production of the entire label that we present is carried out with 30W equipment and with a marking time of 1.3 seconds, being an ideal tool for customizing labels and generating savings in production costs for the producer.
| LASER: | AB-C Series |
| LENS: | 150X150mm |
| MARKET: | ELECTRIC |
| APPLICATION TYPE: | CODING |
| PRODUCT: | ELECTRONIC COMPONENT BOX |
| MATERIAL: | PAINTED CARDBOARD |
| MARKING TYPE: | STATIC |
| MARKING TIME: | 1.3 scs . |
